48V15AH
(Optional 14Ah/17Ah Secondary Battery)
500W
Hub Motor
20 MPH
Top Speed
Up to 100 Miles
Riding Range (With Dual Battery)
UL2849/EN15194
Certification
286 lbs
Payload Capacity
5’3″ ~ 6’3″
Recommended Rider Heights
5’3″ ~ 6’2″ (24″); 5’4″ ~ 6’3″ (26″)

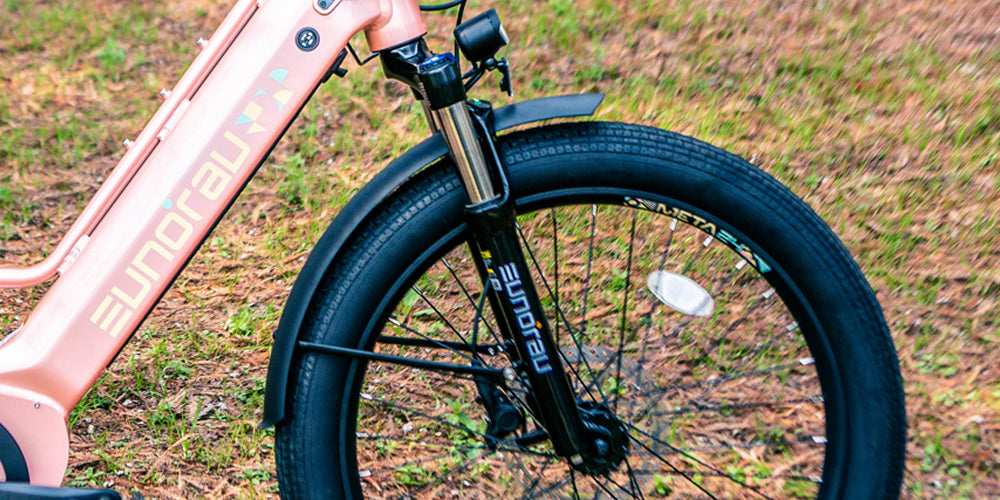

Suspension Front Fork
It adeptly absorbs the majority of abrupt jolts and vibrations, particularly on intricate and challenging paths, thereby mitigating your exhaustion and affording you the ability to accelerate your pace comfortably.
500W Power Ride
Equipped with a robust hub motor nestled within the rear wheel, this system consistently generates 500 watts of power, ensuring a seamless cycling experience that invites you to fully embrace the thrill and pleasure of riding.
Torque Sensor
As you pedal with more force, the motor responds with greater power, enhancing your riding experience by providing increased excitement, extending your travel range, and enabling faster speeds compared to an average commuter bicycle.
Specification
- Battery: 48V 15Ah with Samsung cells (Optional Second Battery 15Ah/17Ah)
- Range: 100 Miles (48V 15Ah Battery+ Second Battery 17Ah)
- Motor: 48V 500W hub motor with max 55 N.m torque
- Frame Size: 17 Inches (24″); 18 inches (26″)
- Total Payload Capacity: 286 lbs
- Recommended Rider Heights: 5’3″ ~ 6’2″ (24″); 5’4″ ~ 6’3″ (26″)
- Maximum Speed: 20MPH
- Charger: US standard 2.0 A smart charger
- Controller: 48V 20A
- Display: BC182 LCD display, EUNORAU GO App Support
- Battery Type: SAMSUNG Lithium-ion
- Battery Charging Time: 5 – 7 hours
- Box Dimensions: (cm) 153 L x 34 W x 84.5 H (24″); 159.5 L x 34 W x 89.5 H (26″)
- Weight: 61.7 lbs (24″); 68.4 lbs (26″)
Components
- Tires: Innova 24″ × 3.0″; Innova 26″ × 3.0″
- Rims: 24inch/26inch Black Alloy
- Brake lever: Hydraulic disc brakes levers with motor cutoff switch
- Shifter: SHIMANO ASLM3157RC 7-speed
- Brake Rotors: 180mm hydraulic disc brakes
- Throttle: Thumb throttle (power at your hand is always available)

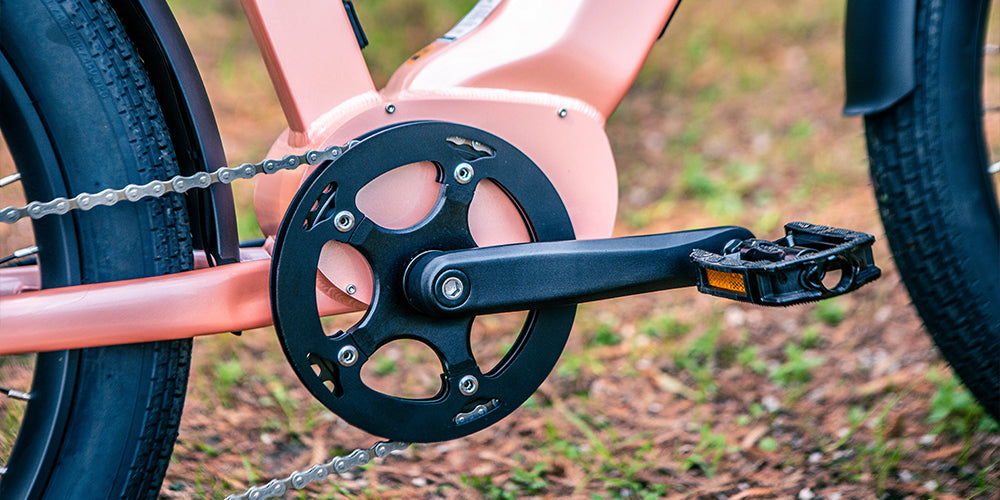

- Crank: 170mm forged aluminum alloy
- Chainring: 42T chain-wheel crank

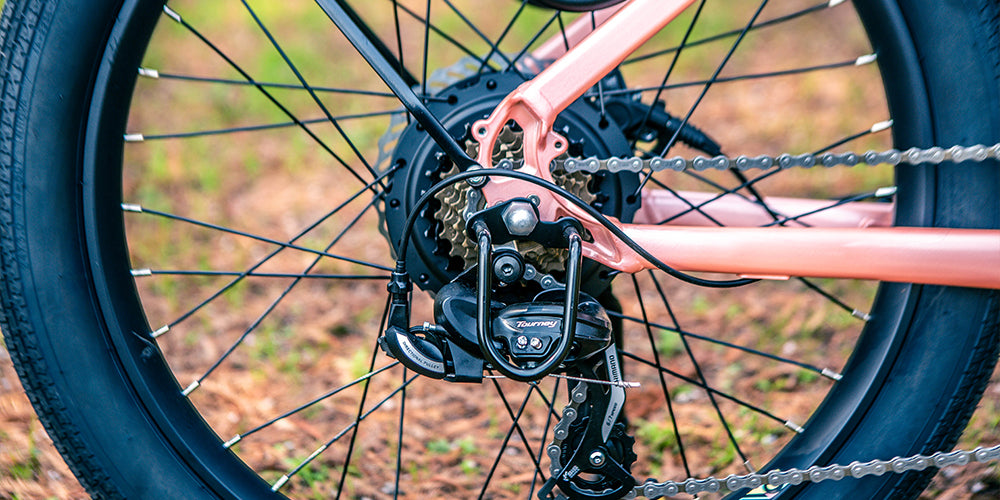

- Freewheel: SHIMANO derailleur 7-speed freewheel
- Frame: Aluminum alloy 6061
- Sensor: Torque sensor
- Saddle: EUNORAU comfortable C7 saddle
-
Seat-to-Ground Height:
30.7″-38.6″(24″); 31.9”-40.1”(26″) - Handlebar: Adjustable ZOOM Stem for Comfort – Matte Black
- Front Light: LED light
-
Rear Light:
LED Light - Fender: Included
- Tool: Included

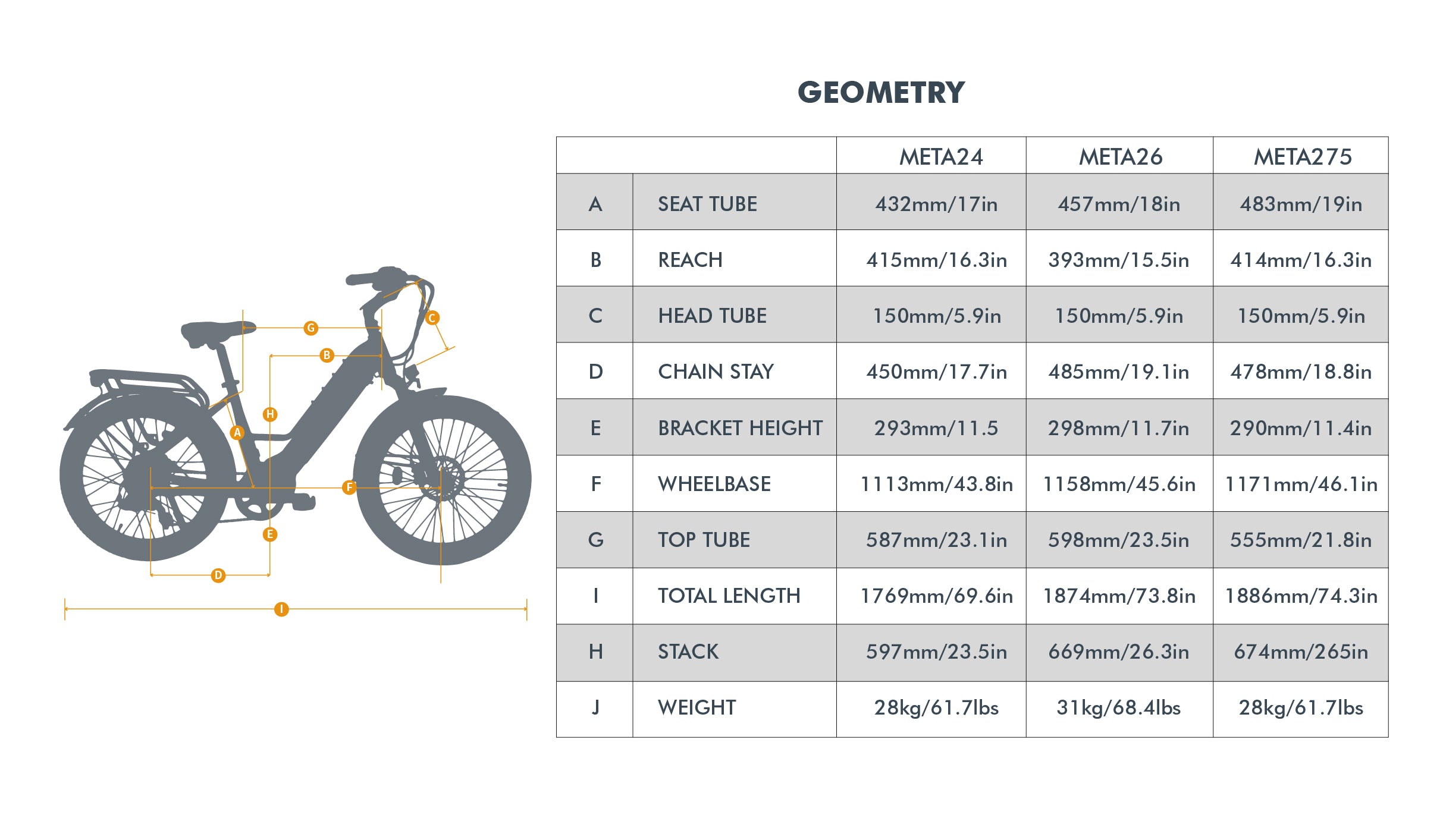

Geometry
